Ordering open
Order by email or phone · online checkout coming shortly
Why buy it from RayVault
We don't just sell these — we use them daily on commercial jobs across Portland. Your machine arrives factory-branded with a pre-ship test report, and when you call with a real-world question, an operator answers.

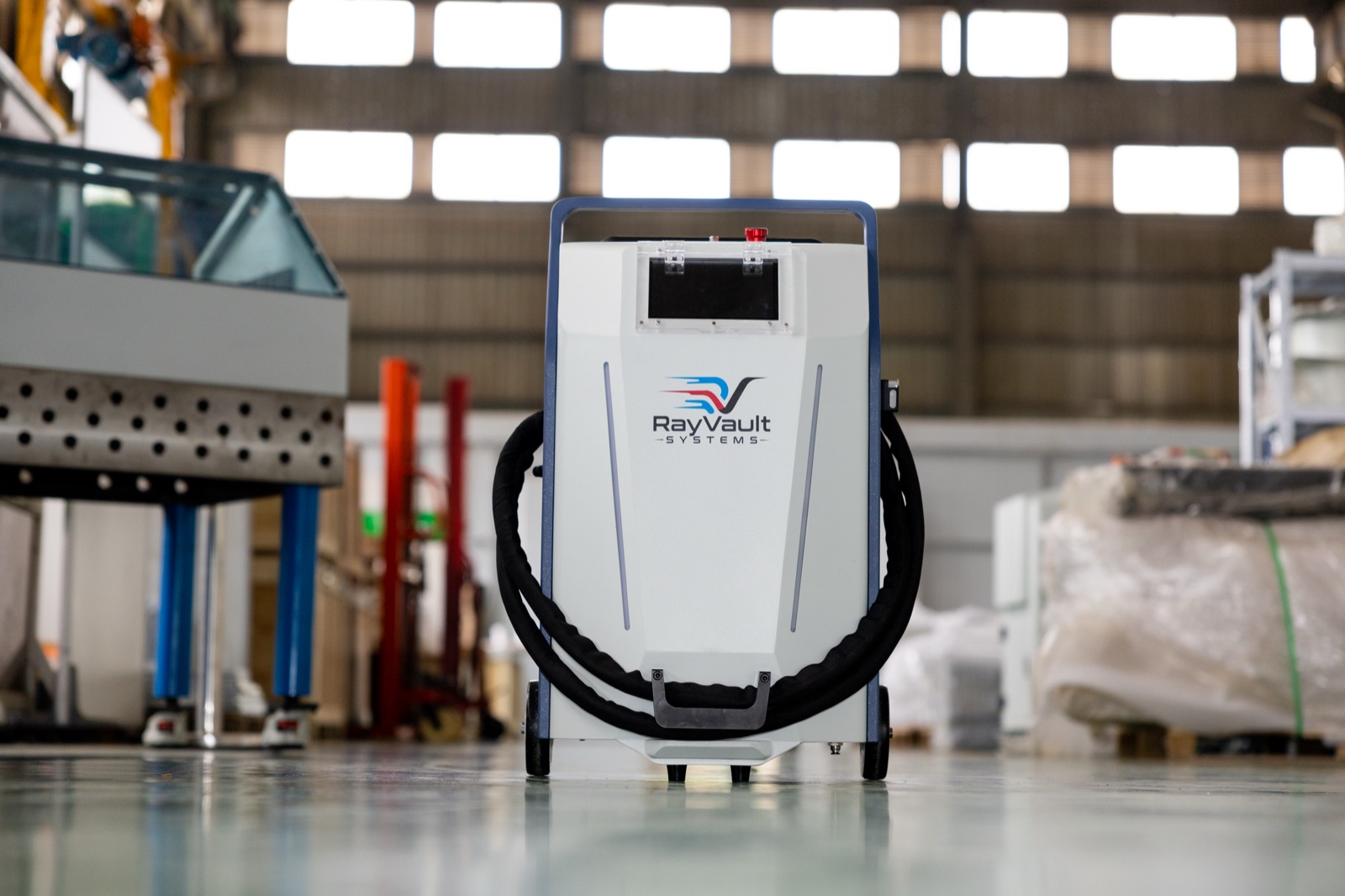

RayVault 300W Suitcase Laser
$14,500
+ crated freight
Draft pricing — final price confirmed before launch (freight & duty math in progress)
Built to order: ~1 week build · 4-hour QA test · crated, insured & shipped. Typical door-to-door ~4–6 weeks, anywhere in the USA. You get status updates at every stage.
This is not a drop-shipped generic unit. Every RayVault 300W is built to order and RayVault-branded from the day it's made, run through a four-hour test cycle before crating, and backed by the company that uses this exact machine commercially, every week.
300W pulsed cleaning handles rust, coatings, paint, oxide, char, and biological growth on metal, masonry, stone, and wood — with the substrate-safe selectivity that makes laser ablation the standard for restoration and industrial maintenance work.
Every parameter is at your fingertips: the control dial and 7-inch touchscreen give you live command of output power, pulse frequency, and scan pattern. Dial it down for delicate patina, up for heavy scale, and switch patterns to match the surface — mid-job, without stopping work.
You are buying the tool we trust our own business to. When you have a question about real-world settings for a real-world surface, you call us and an operator answers.
In the crate
- ✓ Cleaning host machine with 7-inch touchscreen
- ✓ Handheld cleaning head (quick-change)
- ✓ 5 m operation cable
- ✓ Laser safety glasses (1 pair)
- ✓ 5 replaceable protective lenses
- ✓ External control cable & power cord
- ✓ RayVault factory branding & pre-ship test report
Specifications
| Laser type | Pulsed fiber (RayVault suitcase platform) |
|---|---|
| Average power | 300W |
| Wavelength | 1064 nm |
| Max single pulse energy | Configuration-dependent — specified on your unit's test report |
| Pulse frequency | 20 – 4,000 kHz, adjustable |
| Power regulation | 10 – 100%, adjustable |
| Beam quality (M²) | Matched to your delivered pulse-energy configuration |
| Cleaning width | X: 5–116 mm · Y: 5–70 mm, adjustable |
| Cooling | Air-cooled — no chiller, no coolant |
| Supply voltage | AC 110V or 220V ±10%, 50/60 Hz |
| Power consumption | Confirm your shop circuit with us before ordering — we size it with you |
| Unit weight | 36 kg (≈ 79 lb), wheeled |

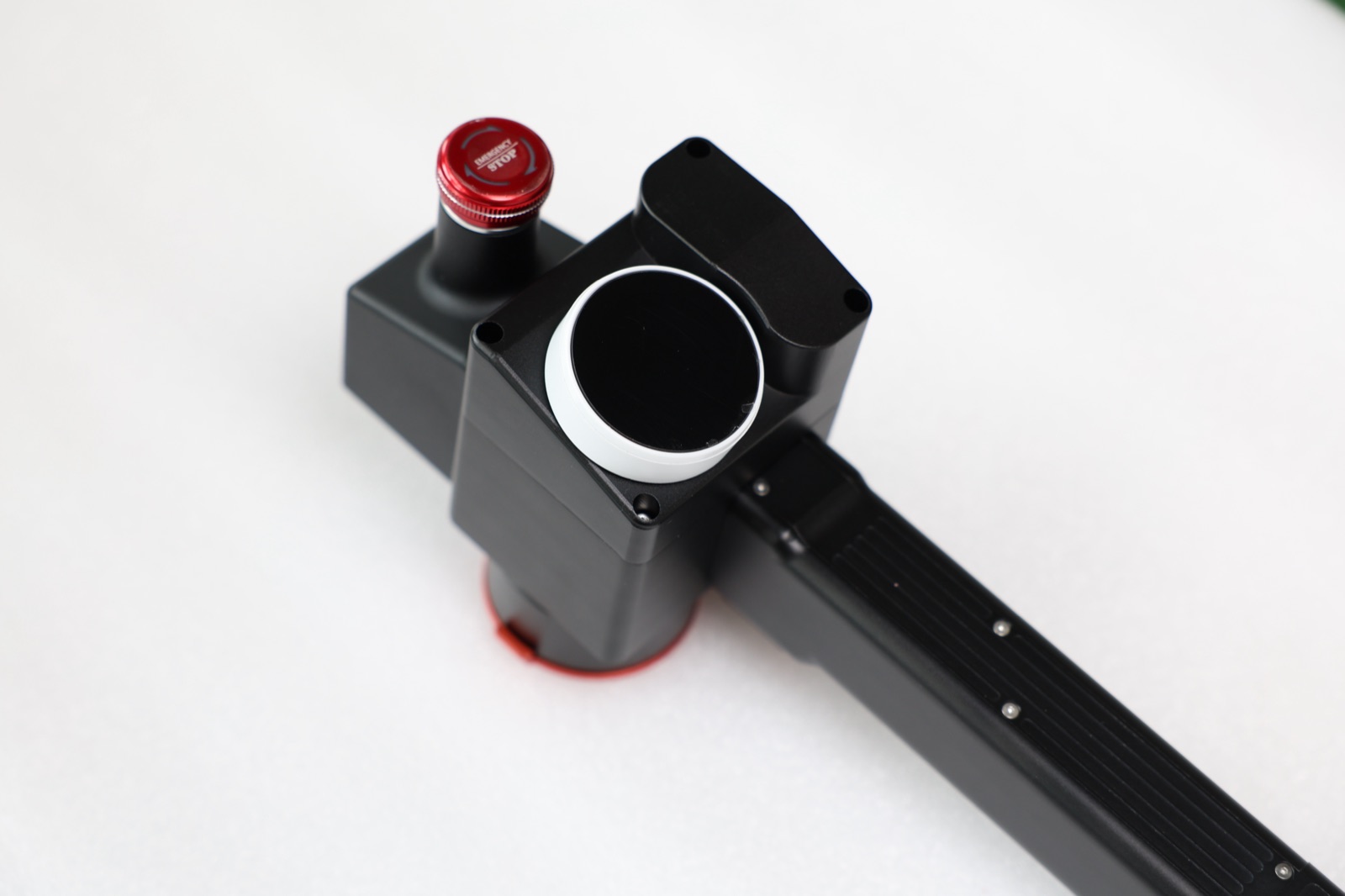

| Handheld head | 1.1 kg · QCS interface · wobble to 150 mm · scan 5–150 Hz |
| Fiber length | 5 m (min bend radius 150 mm) |
| Unit dimensions | 590 × 267 × 487 mm |
| Guide laser | Red aiming beam · anti-reflection protection |
| Operating range | 0 – 40°C |
Specifications are for the RayVault suitcase platform; final values are confirmed on your delivered configuration. Class 4 laser product — rated eyewear required for everyone in the work area.
